Details

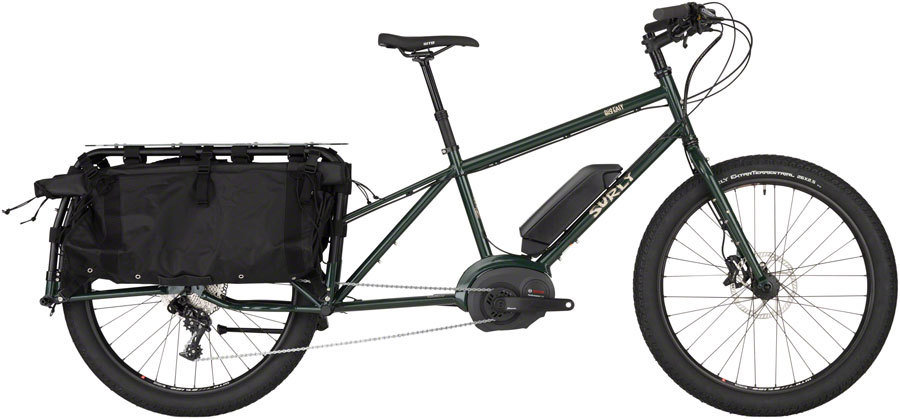

Riding with cargo is core to Surly's mission on this earth, whether you’re running a front rack and bag setup or a full-blown cargo bike and trailer. There are times, however, when even the strongest riders are limited in what they can haul, so Surly created Big Easy, their long-tail electric cargo bike. Consider it the 18-wheeler of the cargo bike world, minus the diesel fumes.
When it comes to geometry, Big Easy rides and feels like a normal-length bike. It has increased stand-over height clearance and they threw in a dropper post to promote bike sharing across different-sized riders. So, whether you want to wave goodbye to the old family gas hog, upgrade your bike-supported business’s two-wheeled fleet, or simply haul more bowling balls during your daily commute, Big Easy makes doing all that, well, easy.
- Full component set perfectly suited for electric cargo bikes, including four-piston Tektro brakes
- Equipped with Bosch Performance CX, their most powerful drive unit
- Capable of running dual batteries for extended range, if you’re into that. (All mounting hardware and wiring included.)
- Damping headset provides smooth and stable handling characteristics under heavy loads
- Condensed bike size range and dropper post routing to promote bike sharing and to accommodate more riders per frame size
- Includes Bosch Standard 4A charger, wiring harness, and brackets for additional battery
WARNING: This product can expose you to chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Specs
| Drive System | Bosch Performance CX 20mph |
|---|---|
| Display | Bosch Purion |
| Battery Type/Weight | Bosch PowerPack 500 |
| Charger Type | Bosch 4A |
| Max. Assisted Speed | 20mph / 32kph |
| Frame | Surly Big Easy Frame for Bosch Mid Drive, 4130 Chromoly Steel |
| Fork | Surly Big Easy Fork, 4130 Chromoly Steel |
| Headset | Cane Creek ViscoSet (tuned for Surly Big Easy) upper, 40 series lower |
| Axles | QR |
| Rims/Wheels | WTB STS i29 TCS |
| Hubs | Shimano M525, 32h, QR |
| Tires | Surly ExtraTerrestrial 26x2.5" Tubeless Ready |
| Crankset | Miranda for Big Easy |
| Chain | KMC X11e |
| Rear Derailleur | SRAM GX |
| Cassette/Rear Cogs | SunRace CSMS7 11-42T |
| Shifters | SRAM NX 11 speed |
| Handlebars | Surly Terminal, 31.8mm |
| Tape/Grips | Velo single lock-on |
| Stem | ProMax 4-bolt 31.8mm clamp |
| Brake Levers | Tektro |
| Brakes | Tektro Orion 4 Piston HD-M745 |
| Saddle | WTB Volt |
| Seatpost | Dropper post, 30.9mm |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Deep Forest Green / Small | 708752298033 | BK9189 |
| Deep Forest Green / Medium | 708752298057 | BK9190 |
| Deep Forest Green / Large | 708752298071 | BK9191 |
